In this series we'll learn a simple self contained 'Hello World'... Well learn how to compile it, and run on an emulator, We'll then learn a more complex example, which includes a 'monitor' function which will show the status of the registers to screen.

Lesson H1 - Hello World on RISC-OS
In this lesson we'll use to use Software Interrupt "SWI 0x00" to show characters to the screen We'll use another SWI to do a newline, and a final one to exit our program, we'll use this to show Hello World.

ROS_Hello.asm
ROS_Hello_Advanced.asm

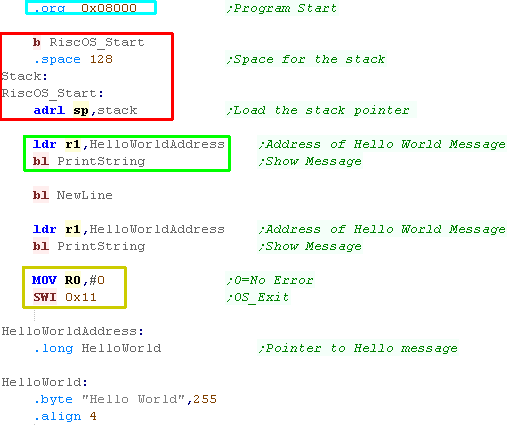

Beginning a RISC OS program
For RISC OS to run our program, it needs to start at memory address 0x8000, we do this with an ORG statement.

We need to set up a valid stack for our program, and allocate some space for it, We put this at the start of our program, and skip over the allocated space with a branch command.

Our program will load the address of the Hello World string, and use our Printstring function to show it to the screen

We return back to the OS with "SWI 0x11" - this takes an error code in R0 (We set it to zero)

Showing Hello World
When we want to print a character to the screen, we'll use SWI 0x0 (OS_WriteC). This will show the character into R0 to the screen.

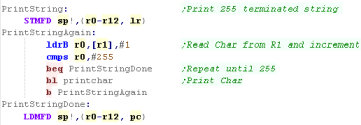

We'll use this PrintChar routine to print a Char 255 terminated string

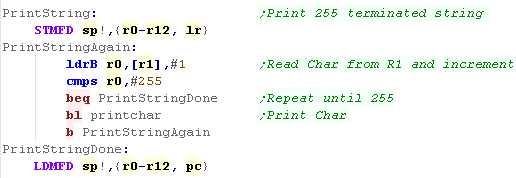

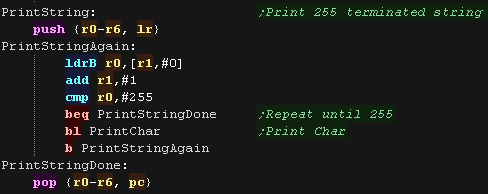

We'll create a function called 'PrintString' which will print the string at address [r1]
When we want to start a new line, we use OS function SWI 0x03 (OS_NewLine)

Compiling and Running
these tutorials use VASM as an assembler, it's free and open source!

We compile it on the command line with the following command:


Defined Symbols... We're defining some symbols on the command line (equivalent of the equ command).. you don't need this for the basic hello world
 FBIN... Tell the assembler to output a binary file
Listing File... we're specify a listing file - it shows the source and resulting bytecode, it's for debugging, so you don't need it, but it helps!
Output file... this is the resulting program file, it needs a ,FF8 extension to be runnable by RISC OS (COMMA FFA)
Source file... the ASM file we're compiling, in this example %buildFile% will be defined by the batchfile - it would be Hello.asm or something if you're writing your own build script
a2... We're specifying to compile ARM2
CheckLabels,NoCase... We're disabling case sensitivity, we're also enabling 'Label Checking' - this will warn us if we've forgotton a tab, meaning or command is being treated as a label.
OPT options... We're enabling a couple of assembler optimizations - these will automatically convert and break up our commands into multiple commands where a parameter is too large to load directly, The assembler will add ADD or SUB command to produce the value we wanted.
We need to transfer our program to the '\RPCEmu\hostfs' folder - this is treated as the disk drive by RPCEmu
We need to set up the run file "!Run,feb" (ExclaimationMark RUN COMMA FEB) in the !BOOT folder to start our program automatically

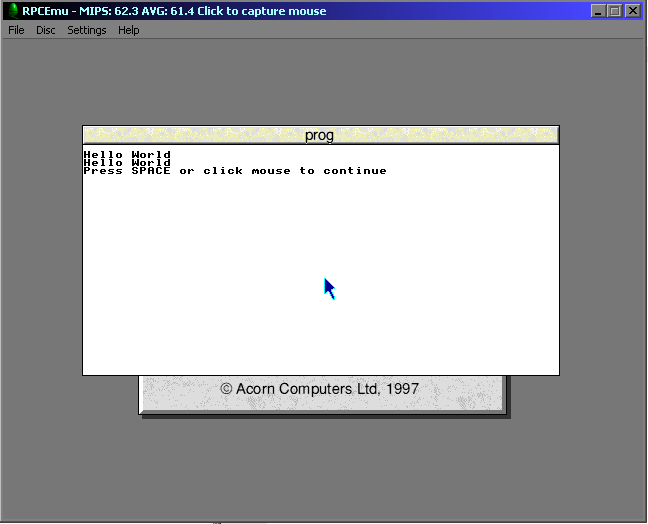

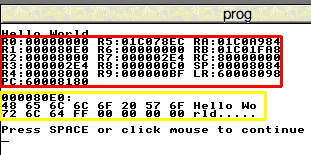

Here is the result

Different versions of RISC-OS will work differently with boot and executables. This example was done with "riscos-3.71.rom" if you're using a different ROM, you will probably need to do things differently.


Extending with a Monitor
In these tutorials we use some software debugging tools,

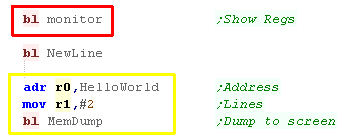

A Monitor which shows the state of the registers,
a Mem Dump which shows some lines of the memory
Here is the result

Monitor Code
We need to include the monitor tools as a separate file.

We also define the width of the memdump - as smaller screen systems cannot output 8 chars per line.
Writing your own monitor tools may seem a bit odd, but writing our own means we don't have to worry about the functionality our emulator does or does not provide.

The Monitor tools are pretty complex, so we're not going to discuss their workings here!

Lesson H2 - Hello World on the GameBoy Advance
Lets take a look at a 'simple' Gameboy Advance Rom, which will show a 'Hello World' message on the screen.

Unfortunately, we'll need to define our own font, and set the screen pixels according to the bits in that0 font... Lets learn how.

GBA_Hello.asm
GBA_Hello_Advance.asm


We'll need to define an entire font for todays example!... but don't worry, you can download the source code for this example, and all the others from the link above an to the right.
This is nothing new, The source for every tutorial on the ChibiAkumas site should be in the respective sources.7z (if it's not, it's a mistake so let me know), but it seemed worth mentioning as people keep complaining about 'typing in code from screenshots' - so clearly not everyone realizes the source code is available.
Beginning a Gameboy Advance program
First we're going to define some symbols. RAM on the GBA is at memory address 0x02000000.
We're going to need to define a couple of bytes of RAM to store the X and Y position the next character should be drawn (the 'Cursor' position)
Our ROM file needs to start at 0x08000000, Our rom starts with a Branch to the main program.

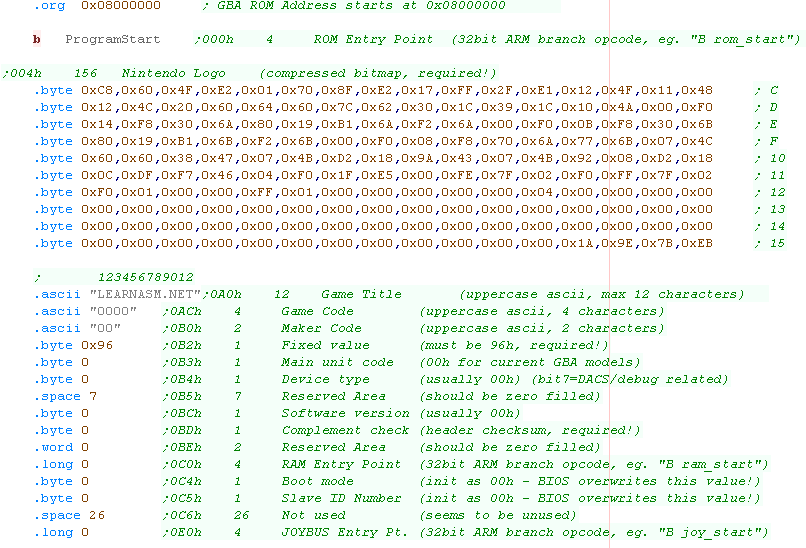

After that, We should have a 'generic header' to make the cartridge correct, though actually VisualBoyAdvance will work without any proper data here.

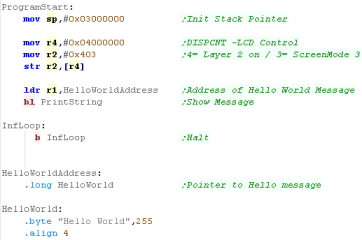

When our program starts we need to set a valid stack pointer, we point the stack pointer to the top of the RAM area.

We're going to use a bitmap screen for our graphics, we turn this on by writing #0x403 to address 0x04000000

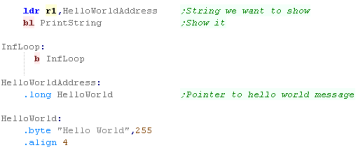

We're going to send the address of the Char 255 terminated 'Hello World' string to our PrintString subroutine.

Because we have limited 32 bit loading options on the ARM, we store the address at 'HelloWorldAddress', and load the address into R1 with 'LDR'

We then run our PrintString Subroutine

Showing Hello World

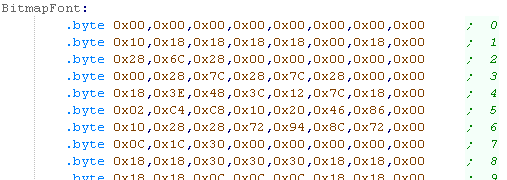

We're going to need data for our font, we're using an 8x8 pixel font, 1 bit per pixel, so each character is 8 bytes. we're defining characters 32-128 of the ASCII character set.
We're going to show character R0 to the screen.

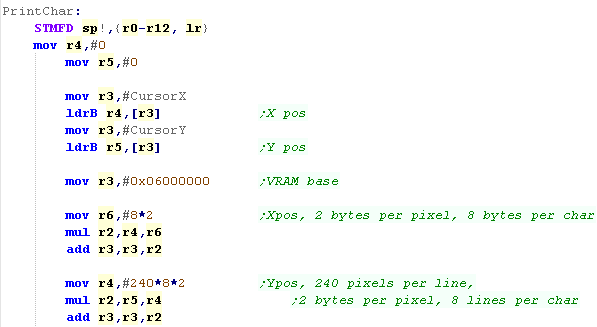

Our Printchar routine needs to calculate the screen position in RAM, the screen base is 0x06000000.

Each pixel is 2 bytes (in 0b-BBBBBGGGGGRRRRR format , 5 bits per color channel), and our character is 8 pixels wide so we multiply the Xpos by 8*2,

Each line is 240 pixels, so we multiply out Ypos by 240*8*2
Next we want to calculate the address of the character in our font,
We have no characters below 32, so we subtract 32 from the character we want to show

Each character is 8 bytes, so we rotate the character number left 3 bits, multiplying it by 3, we add this to the 'BitmapFont'
We're going to process each bit of the lines of the font,
We shift bits out of the read in line, setting a pixel of the screen when the bit is 1.
We repeat for all 8 lines,

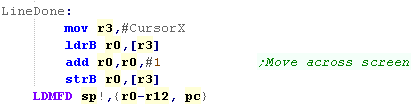

After we've finished we increase our CursorX, so we're in the correct position for the next character.

Compiling and Running
these tutorials use VASM as an assembler, it's free and open source!

We compile it on the command line with the following command:


Defined Symbols... We're defining some symbols on the command line (equivalent of the equ command).. you don't need this for the basic hello world
FBIN... Tell the assembler to output a binary file
Listing File... we're specify a listing file - it shows the source and resulting bytecode, it's for debugging, so you don't need it, but it helps!
Output file... this is the resulting ROM cartridge.
Source file... the ASM file we're compiling, in this example %buildFile% will be defined by the batchfile - it would be Hello.asm or something if you're writing your own build script
m7tdmi... We're specifying to compile ARM7tdmi code (The GBA CPU)
CheckLabels,NoCase... We're disabling case sensitivity, we're also enabling 'Label Checking' - this will warn us if we've forgotton a tab, meaning or command is being treated as a label.
We can start our built cartridge from the command line
Alternatively we can load it from the file menu of our emulator
Here is the result

Extending with a Monitor
In these tutorials we use some software debugging tools,

A Monitor which shows the state of the registers,
a Mem Dump which shows some lines of the memory
Here is the result

Monitor Code
We need to include the monitor tools as a separate file.

We also define the width of the memdump - as smaller screen systems cannot output 8 chars per line.
Writing your own monitor tools may seem a bit odd, but writing our own means we don't have to worry about the functionality our emulator does or does not provide.

The Monitor tools are pretty complex, so we're not going to discuss their workings here!

Lesson H3 - Hello World on the Nintendo DS
Lets take a look at a 'simple' Nintendo DS Rom, which will show a 'Hello World' message on the screen.

Unfortunately, we'll need to define our own font, and set the screen pixels according to the bits in that0 font... Lets learn how.

NDS_Hello.asm
NDS_Hello_Advanced.asm


We'll need to define an entire font for todays example!... but don't worry, you can download the source code for this example, and all the others from the link above an to the right.
This is nothing new, The source for every tutorial on the ChibiAkumas site should be in the respective sources.7z (if it's not, it's a mistake so let me know), but it seemed worth mentioning as people keep complaining about 'typing in code from screenshots' - so clearly not everyone realizes the source code is available.
Beginning a Nintendo DS program
First we're going to define some symbols. Like the GBA RAM on the DS is at memory address 0x02000000.
We're going to need to define a couple of bytes of RAM to store the X and Y position the next character should be drawn (the 'Cursor' position)
the NDS will copy our program to RAM (at an address we specify - 0x02000000)

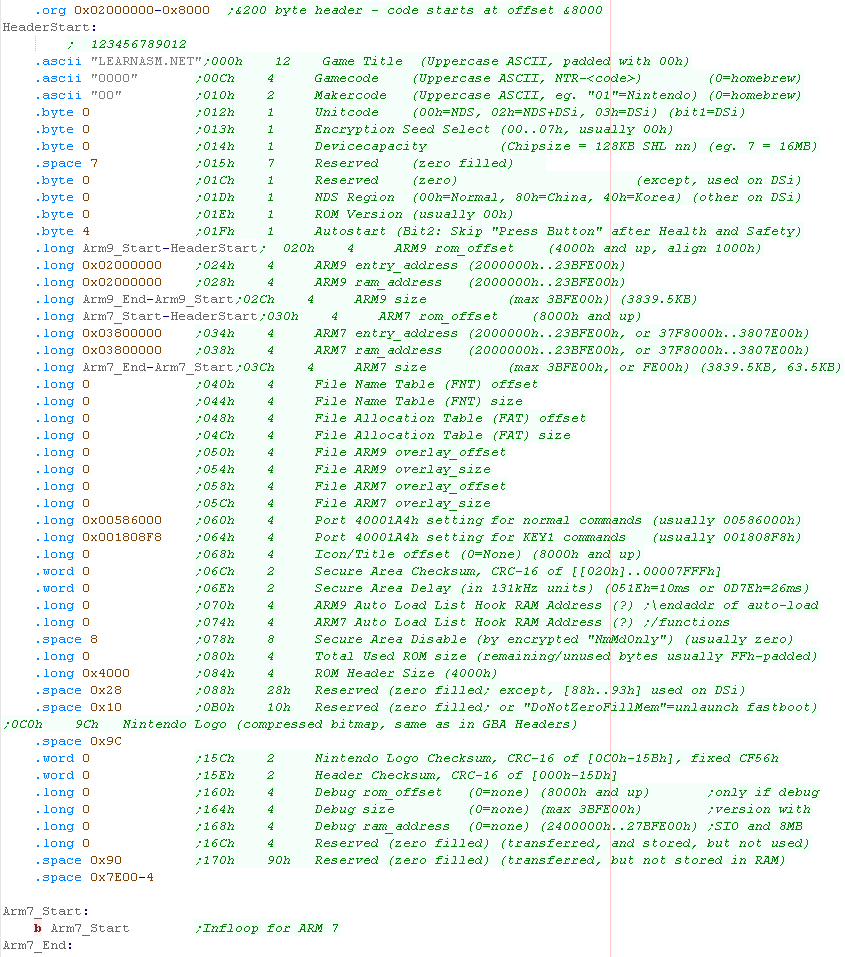

But we need to create a header first, this specifies (among other things) the address and length of the programs for the Main CPU (ARM9 - our program) and Sub CPU (ARM7 - sound and touchscreen driver) as well as the RAM destination these should be copied to.

We also define a dummy ARM7 program - as we don't need the SUB CPU
When our program starts we need to set a valid stack pointer, we point the stack pointer to the top of the RAM area.

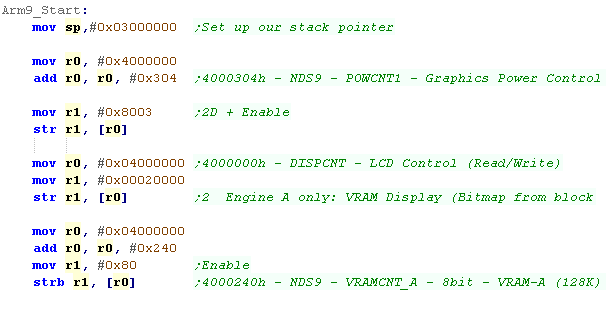

First we need to enable the graphics hardware, we do this by writing 0x8003 to 0x4000304

Next we need to enable the bitmap graphics of Engine A (Engine B is less powerful)... we do this by writing 0x00020000 to 0x04000000

Finally we need to enable the VRAM by writing 0x80 to 0x4000240

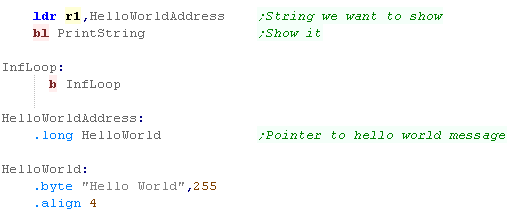

We're going to send the address of the Char 255 terminated 'Hello World' string to our PrintString subroutine.

Because we have limited 32 bit loading options on the ARM, we store the address at 'HelloWorldAddress', and load the address into R1 with 'LDR'

We then run our PrintString Subroutine

Showing Hello World
We're going to need data for our font, we're using an 8x8 pixel font, 1 bit per pixel, so each character is 8 bytes. we're defining characters 32-128 of the ASCII character set.
We're going to show character R0 to the screen.

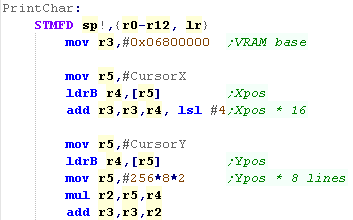

Our Printchar routine needs to calculate the screen position in RAM, the screen base is 0x06800000.

Each pixel is 2 bytes (in 0b-BBBBBGGGGGRRRRR format , 5 bits per color channel), and our character is 8 pixels wide so we multiply the Xpos by 8*2,

Each line is 256 pixels, so we multiply out Ypos by 256*8*2
Next we want to calculate the address of the character in our font,
We have no characters below 32, so we subtract 32 from the character we want to show

Each character is 8 bytes, so we rotate the character number left 3 bits, multiplying it by 3, we add this to the 'BitmapFont'
We're going to process each bit of the lines of the font,

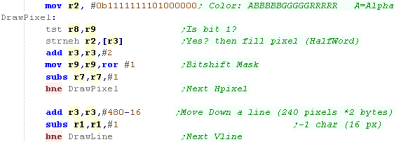

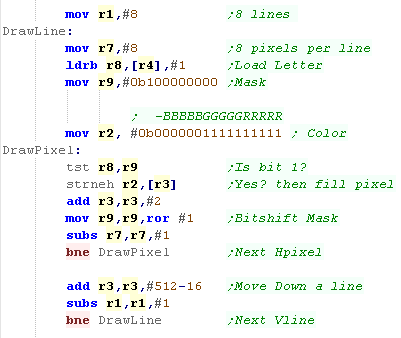

We shift bits out of the read in line, setting a pixel of the screen when the bit is 1.
We repeat for all 8 lines,
After we've finished we increase our CursorX, so we're in the correct position for the next character.

Compiling and Running
these tutorials use VASM as an assembler, it's free and open source!

We compile it on the command line with the following command:


Defined Symbols... We're defining some symbols on the command line (equivalent of the equ command).. you don't need this for the basic hello world
FBIN... Tell the assembler to output a binary file
Listing File... we're specify a listing file - it shows the source and resulting bytecode, it's for debugging, so you don't need it, but it helps!
Output file... this is the resulting ROM cartridge.
Source file... the ASM file we're compiling, in this example %buildFile% will be defined by the batchfile - it would be Hello.asm or something if you're writing your own build script
m7tdmi... We're specifying to compile ARM7tdmi code (The NDS CPU)
CheckLabels,NoCase... We're disabling case sensitivity, we're also enabling 'Label Checking' - this will warn us if we've forgotton a tab, meaning or command is being treated as a label.
We can start our built cartridge from the command line
Alternatively we can load it from the file menu of our emulator
Here is the result

Extending with a Monitor
In these tutorials we use some software debugging tools,

A Monitor which shows the state of the registers,
a Mem Dump which shows some lines of the memory

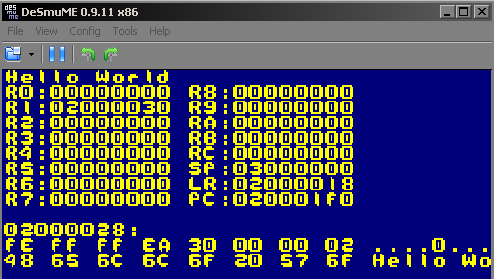

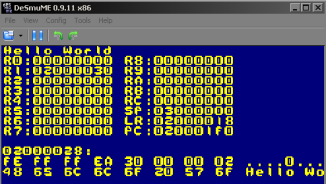

Here is the result

Monitor Code
We need to include the monitor tools as a separate file.

We also define the width of the memdump - as smaller screen systems cannot output 8 chars per line.
Writing your own monitor tools may seem a bit odd, but writing our own means we don't have to worry about the functionality our emulator does or does not provide.

The Monitor tools are pretty complex, so we're not going to discuss their workings here!

Lesson H4 - Hello World on the GameBoy Advance with ARM Thumb
Lets take a look at another minimal example, this time we'll show a Hello World Message using ARM THUMB code

GBA_HelloThumb.asm


We need a tiny bit of ARM code to get our program running in THUMB mode, it's impossible to start the arm straight in THUMB - oh well, it's not 100% Thumb, but whacha gonna do!?
Beginning a Gameboy Advance program
We use two variables, CursorX and CursorY, to track the position where the next character should be shown. These are defined in the RAM memory 0x02000000+
Our ROM file needs to start at 0x08000000, Our rom starts with a Branch to the main program.

After that, We should have a 'generic header' to make the cartridge correct, though actually VisualBoyAdvance will work without any proper data here.
When our program starts, it does so in ARM mode, so we first switch to THUMB with a BX command.
Because of the THUMB limitations, we have to store our 32 bit values as data values, and load them into registers.

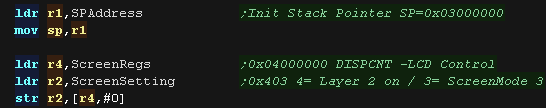

At the start of our program we need to define a valid Stack Pointer (SP). We then turn on the graphics mode of our screen by writing 0x403 to address 0x04000000 .
We load our HelloWorld message into R1, and call our PrintString subroutine to show our message to the screen.

Showing Hello World
We read in a character from the string we want to show, then look up the matching character in our font. Register R1 points to the string, which should end with a character 255.

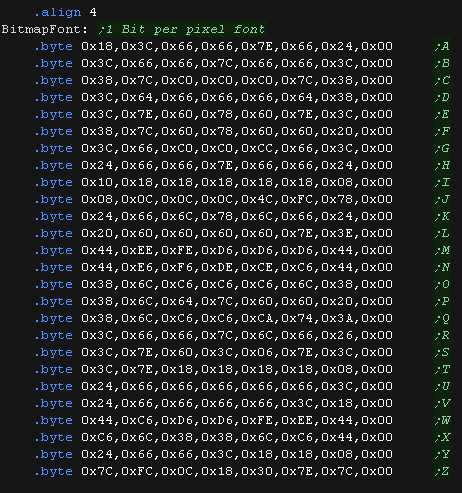

The GBA does not have a firmware font, so we defined a 1 bit per pixel font (1 byte per line). We'll need to convert this to 16bpp for the GBA screen format.

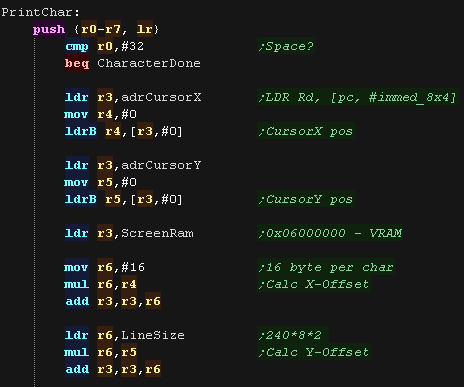

The VRAM screen starts at 0x06000000, each pixel is 2 bytes.

Our font is 8 pixels wide, so we multiply the CursorX position by 16. Each line of the screen is 240 pixels (480 bytes) and our font is 8 lines tall, so we multiply the CursorY position by 240*8*2.

We add these to the screen base. We have now calculated our Screen Address for the character to be shown in R3.

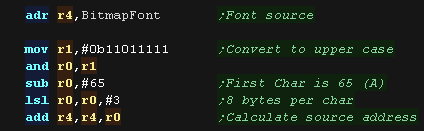

We need to convert the ASCII character to a character number in our font.

We also need to convert to uppercase.

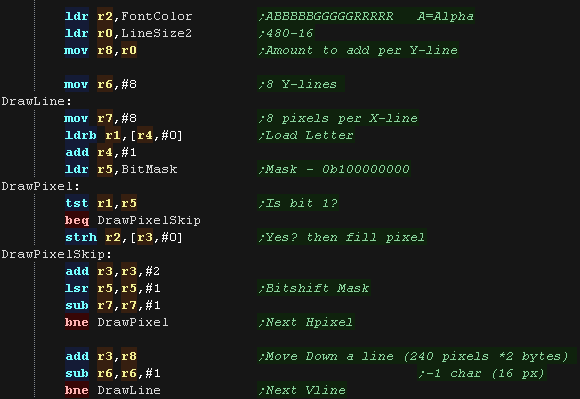

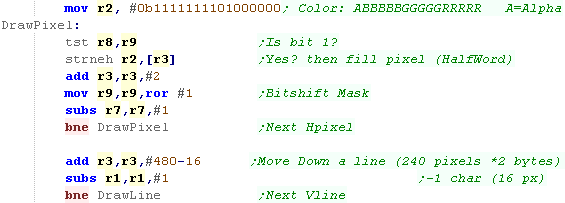

Depending on that bit, we set the matching pixel of the screen with the font color, or just skip over that pixel leaving it unchanged.

We repeat until the line is done, then add #480-16 to the screen position (the length of one line minus the number of bytes in one character).

We repeat this procedure until all 8 lines of the font are done,

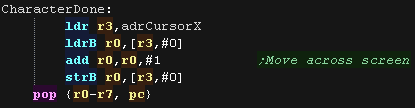

After we've finished we increase our CursorX, so we're in the correct position for the next character.

Compiling and Running
these tutorials use VASM as an assembler, it's free and open source!

We compile it on the command line with the following command:


FBIN... Tell the assembler to output a binary file
Listing File... we're specify a listing file - it shows the source and resulting bytecode, it's for debugging, so you don't need it, but it helps!
Output file... this is the resulting ROM cartridge.
Source file... the ASM file we're compiling, in this example %buildFile% will be defined by the batchfile - it would be Hello.asm or something if you're writing your own build script
m7tdmi... We're specifying to compile ARM7tdmi code (The GBA CPU)
NOIALIGN... We're telling the assembler not to align to 32 bit boundarys (THUMB is 16 bit)
CheckLabels,NoCase... We're disabling case sensitivity, we're also enabling 'Label Checking' - this will warn us if we've forgotton a tab, meaning or command is being treated as a label.
We can start our built cartridge from the command line
Alternatively we can load it from the file menu of our emulator
Here is the result

Lesson H5 - Hello World on RISC-OS via BBC Basic!

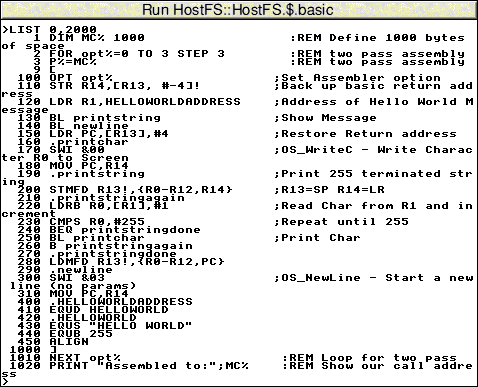

We created a 'Hello world' example before on RISC-OS, but this time we'll remake it, this time assembling and running it from the BBC BASIC assembler built into RISC-OS itself!

BasicFile_HELLO.txt

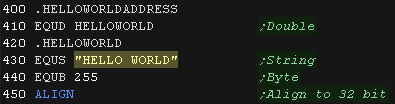

Unlike most BASICs, BBC BASIC is CASE SENSITIVE, so you need to put all the commands in CAPS!

But the Assembler also seemed to have trouble with all uppercase labels, so we'll leave labels as lowercase

The Basic wrapper
Our emulator is set to mount the folder "HostFS" as a drive on our RiscOS Machine

Lets create a script file to start BASIC and load a text file as it's program.
We call this file basic,feb (BASIC COMMA FEB)

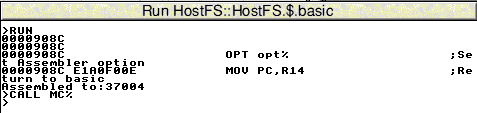

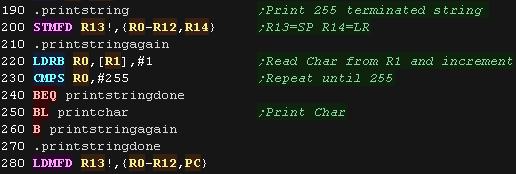

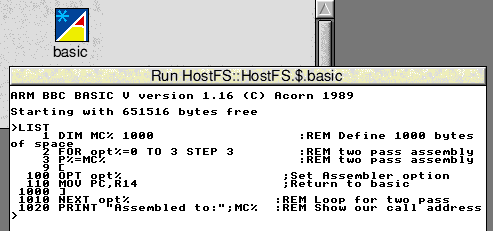

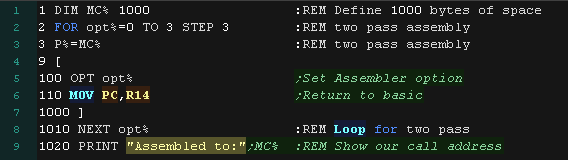

Lets look at a simple wrapper for a minimal ASM program (It just returns to basic!)
:REM - A basic REM comment statement
;;- an Assembly comment statement (\ also works)
[ ] - Start and end of the ASM block

DIM MC% 100 - This Defines a block of 101 bytes from free memory and calls it MC%
FOR opt%=0 TO 3 STEP 3 - This runs two passes of our assembly file, once with option 0 (No Errors shown)  and once with option 3 (Errors shown + Listing)
P%=MC%
- This sets the program counter  (P%) for the start of the pass
OPT opt% - This is an assembler directive, and tells the assembler what OPTions to use for the pass

We also had to replace TAB characters with SPACES, as the assembler doesn't like TABs
if we start with our BASIC script, it will load the file "BasicFile" in automatically for us so we don't need to type anything into basic!
To assemble our program we just use RUN

We can start our program with CALL MC% , or by calling the address we assembled to (CALL 6681)

Showing Hello World to the screen

We're going to convert our previous hello world example to BBC BASIC format.

The main changes are:

Hexadecimal needs to be specified with & prefix
Labels need to be prefixed with . (full stop)
TABs needed to be replaced with spaces
SP needs to be referred to as R13
LR needs to be referred to as R14

Bytes, Words and Longs need to be defined with EQU
When we want to print a character to the screen, we'll use SWI &00 (OS_WriteC). This will show the character into R0 to the screen.

We'll use this PrintChar routine to print a Char 255 terminated string

We'll create a function called 'PrintString' which will print the string at address [r1]


When we want to start a new line, we use OS function SWI &03 (OS_NewLine)

We need to define our string!

We define a string with EQUS, and a byte with EQUB

We also define a 32 bit pointer to our string with EQUD (Double)

We re-align to 32 bits with an ALIGN statement
We push the return address R14 onto the stack

We load the address of our string, and call our subroutine.

We then return to the address on the stack to get back to basic.
We start our program with CALL MC%

Our Hello World message will be shown to screen





View Options
Default Dark
Simple (Hide this menu)
Print Mode (white background)

Top Menu
***Main Menu***
Youtube channel
Patreon
Introduction to Assembly (Basics for absolute beginners)
Amazon Affiliate Link
Forum
AkuSprite Editor
ChibiTracker
Dec/Bin/Hex/Oct/Ascii Table

Alt Tech
Archive.org
Bitchute
Odysee
Rumble
DailyMotion
Please note: I wlll upload more content to these alt platforms based on the views they bring in

Z80 Content
***Z80 Tutorial List***
Learn Z80 Assembly (2021)
Learn Z80 Assembly (old)
Hello World
Simple Samples
Advanced Series
Multiplatform Series
Platform Specific Series
ChibiAkumas Series
Grime Z80
Z80 Downloads
Z80 Cheatsheet
Sources.7z
DevTools kit
Z80 Platforms
Amstrad CPC
Elan Enterprise
Gameboy & Gameboy Color
Master System & GameGear
MSX & MSX2
Sam Coupe
TI-83
ZX Spectrum
Spectrum NEXT
Camputers Lynx

6502 Content
***6502 Tutorial List***
Learn 6502 Assembly
Advanced Series
Platform Specific Series
Hello World Series
Simple Samples
Grime 6502
6502 Downloads
6502 Cheatsheet
Sources.7z
DevTools kit
6502 Platforms
Apple IIe
Atari 800 and 5200
Atari Lynx
BBC Micro
Commodore 64
Commodore PET
Commander x16
Super Nintendo (SNES)
Nintendo NES / Famicom
PC Engine (Turbografx-16)
Vic 20

68000 Content
***68000 Tutorial List***
Learn 68000 Assembly
Hello World Series
Platform Specific Series
Simple Samples
Grime 68000
68000 Downloads
68000 Cheatsheet
Sources.7z
DevTools kit
68000 Platforms
Amiga 500
Atari ST
Neo Geo
Sega Genesis / Mega Drive
Sinclair QL
X68000 (Sharp x68k)

8086 Content
Learn 8086 Assembly
Platform Specific Series
Hello World Series
Simple Samples
8086 Downloads
8086 Cheatsheet
Sources.7z
DevTools kit
8086 Platforms
Wonderswan
MsDos

ARM Content
Learn ARM Assembly
Learn ARM Thumb Assembly
Platform Specific Series
Hello World
Simple Samples
ARM Downloads
ARM Cheatsheet
Sources.7z
DevTools kit
ARM Platforms
Gameboy Advance
Nintendo DS
Risc Os

Risc-V Content
Learn Risc-V Assembly
Risc-V Downloads
Risc-V Cheatsheet
Sources.7z
DevTools kit

MIPS Content
Learn Risc-V Assembly
Platform Specific Series
Hello World
Simple Samples
MIPS Downloads
MIPS Cheatsheet
Sources.7z
DevTools kit
MIPS Platforms
Playstation
N64

PDP-11 Content
Learn PDP-11 Assembly
Platform Specific Series
Simple Samples
PDP-11 Downloads
PDP-11 Cheatsheet
Sources.7z
DevTools kit
PDP-11 Platforms
PDP-11
UKNC

TMS9900 Content
Learn TMS9900 Assembly
Platform Specific Series
Hello World
TMS9900 Downloads
TMS9900 Cheatsheet
Sources.7z
DevTools kit
TMS9900 Platforms
Ti 99

6809 Content
Learn 6809 Assembly
Learn 6309 Assembly
Platform Specific Series
Hello World Series
Simple Samples
6809 Downloads
6809/6309 Cheatsheet
Sources.7z
DevTools kit
6809 Platforms
Dragon 32/Tandy Coco
Fujitsu FM7
TRS-80 Coco 3
Vectrex

65816 Content
Learn 65816 Assembly
Hello World
Simple Samples
65816 Downloads
65816 Cheatsheet
Sources.7z
DevTools kit
65816 Platforms
SNES

eZ80 Content
Learn eZ80 Assembly
Platform Specific Series
eZ80 Downloads
eZ80 Cheatsheet
Sources.7z
DevTools kit
eZ80 Platforms
Ti84 PCE

IBM370 Content
Learn IBM370 Assembly
Simple Samples
IBM370 Downloads
IBM370 Cheatsheet
Sources.7z
DevTools kit

Super-H Content
Learn SH2 Assembly
Hello World Series
Simple Samples
SH2 Downloads
SH2 Cheatsheet
Sources.7z
DevTools kit
SH2 Platforms
32x
Saturn

PowerPC Content
Learn PowerPC Assembly
Hello World Series
Simple Samples
PowerPC Downloads
PowerPC Cheatsheet
Sources.7z
DevTools kit
PowerPC Platforms
Gamecube

Work in Progress
ChibiAndroids

Misc bits
Ruby programming









Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!












































































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!












































































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!
